Ever seen ? heard of ? ..a Chicago Arms Palm Pistol ?

joepistol

Well-Known Fanatic
Joined
Apr 23, 2020
Messages
1,135
Location
Rochester Hills, Mi
End of riding season is upon me, so I wentent out in the cold yesterday on my bike, needed to circulate some sta-bil thru the fuel system.
Since I'm close, and had an issue with one of my 1911's to address, decided to stop by and see my gunsmith / gun guru.
He gets some interesting stuff in for repair / modification. He had something I'd never seen before..a palm pistol
. He had it apart & when asked about it, showed me the parts & explained how it worked.
I found it very interesting, got permission to take some pics, and then later last night, did an internet search on it.
Reason this unusual "revolver" was in for repair ? a broken ( actually, "cracked" spring )
.
This was made in the late 1890's.. internet says a Frenchman designed & built the early models, then sold the design to an American.
The American wanted to market the pistol @ the Chicago World's Fair, ..so contracted with a company to build 15K of them, for sale @ the Fair.
Builder was unable to complete the contracted amount of firearms, ended it a court battle, etc.. About 13K were supposedly built, all were sold
by around 1910. The internet showed several that have beautiful exterior finishing, but the inner parts look rough & crude.
The example I examined has finely finished internal parts, well made, precise fitting, etc..and had a rather plain exterior finish..blued, not nickle plated.
I'd guess it was an early production one, as the later models appear not as well finished, internally..
probably because production was sped up, trying to meet the contracted # of firearms contracted.

The pistol / revolver is a 7 shot..but fired a .32 rimfire rnd.
Doug told me this was a piece a gambler would keep in a vest pocket, as a means of keeping players honest,
or to extract revenge on dishonest ones.LOL

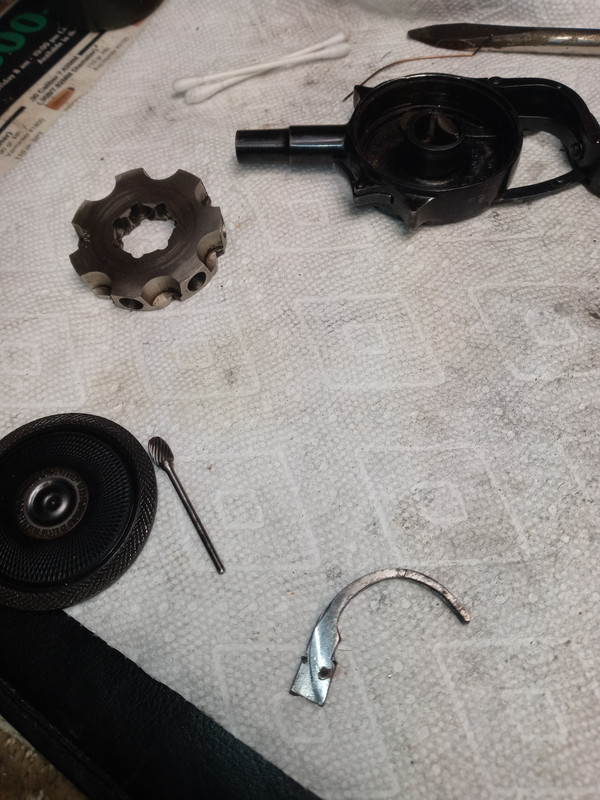

first pic is all the pieces:

the bottom piece , the C shaped metal, is the cracked spring..the new part being fabricated from the old part.

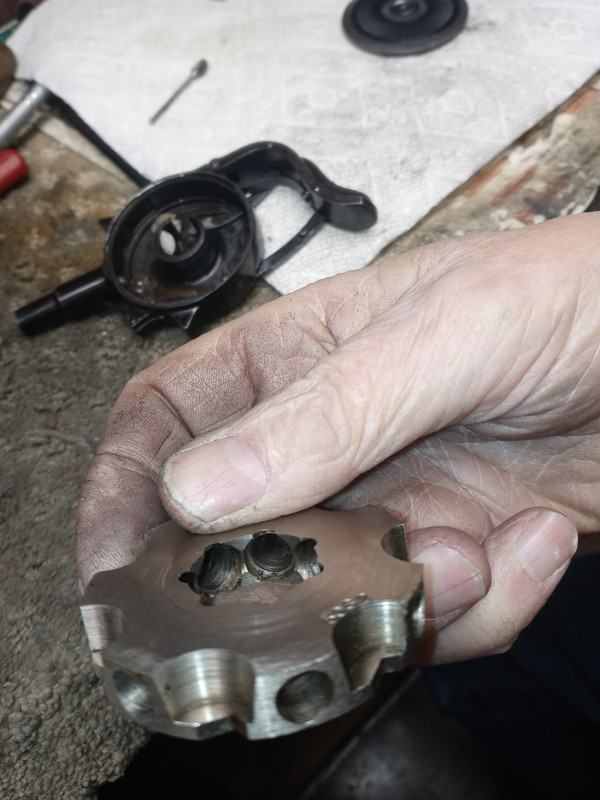

this is the cylinder..load rds from the inside, bullet facing outward"


joepistol

Well-Known Fanatic
Joined
Apr 23, 2020
Messages
1,135
Location
Rochester Hills, Mi

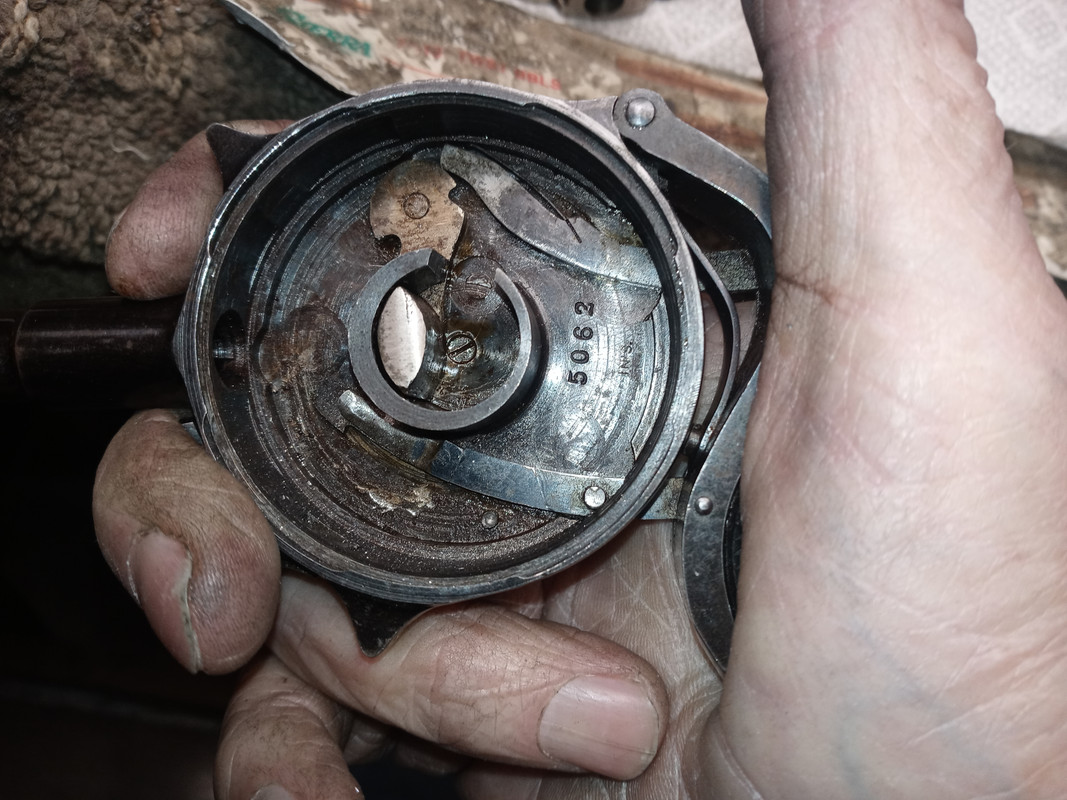

Here's the case: note the sear at the top..when the palm pressed the trigger, the sear move, then would break, firing fin ( attached to flat piece in center of frame) would rotate striking the cartridge rim & fire, the bullet would shoot out the barrel, visible between the index & middle fingers.

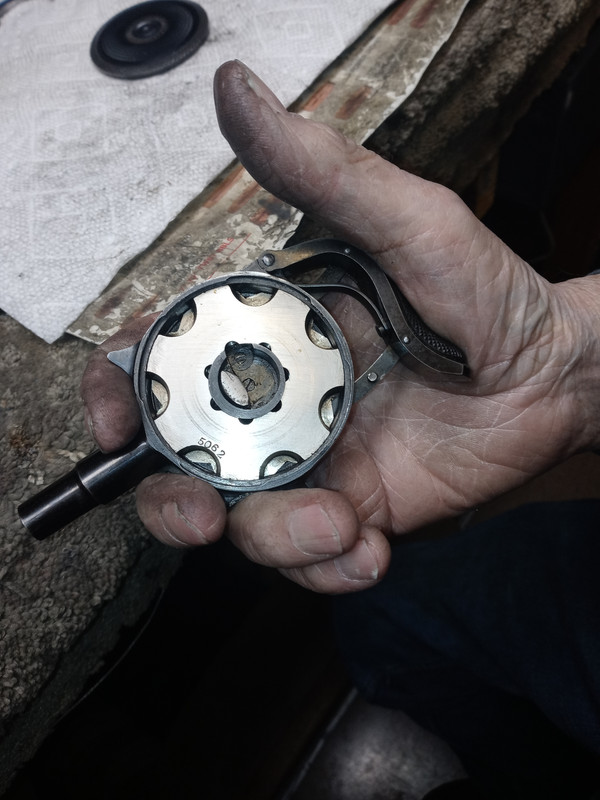

case with "cylinder " in place:


joepistol

Well-Known Fanatic
Joined
Apr 23, 2020
Messages
1,135
Location
Rochester Hills, Mi

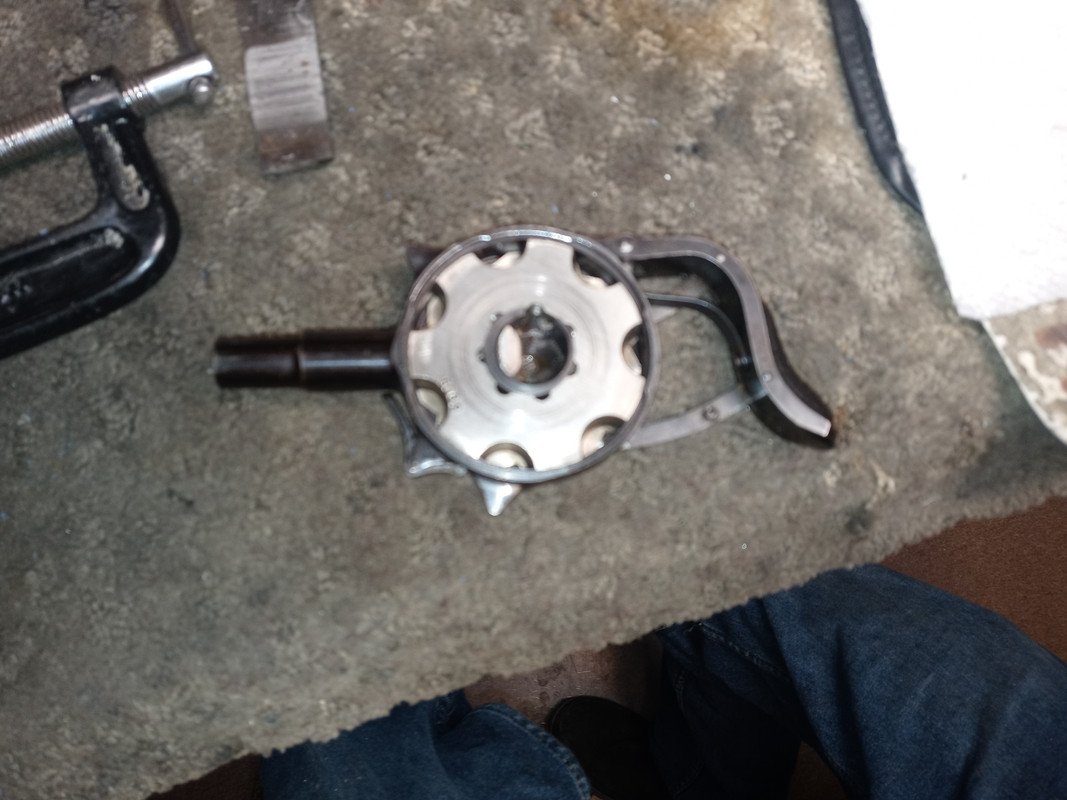

another pic of most the pieces in place..



I found the clever design & workmanship remarkable, esp. considering that it was made before 1900..
the inner workings reminded me of a mechanical watch. Ever tried to find 32 rimfire ammo ?

I always enjoy visiting my gunsmith & seeing what he's working on..sometimes.. (usually) I actually learn something.


Bob Lee

Well-Known Fanatic
Joined
Jul 27, 2018
Messages
2,913
another pic of most the pieces in place..



I found the clever design & workmanship remarkable, esp. considering that it was made before 1900..
the inner workings reminded me of a mechanical watch. Ever tried to find 32 rimfire ammo ?

I always enjoy visiting my gunsmith & seeing what he's working on..sometimes.. (usually) I actually learn something.
another pic of most the pieces in place..



I found the clever design & workmanship remarkable, esp. considering that it was made before 1900..
the inner workings reminded me of a mechanical watch. Ever tried to find 32 rimfire ammo ?

I always enjoy visiting my gunsmith & seeing what he's working on..sometimes.. (usually) I actually learn something.
I remember reading about these when I was really young, (probably around 10). I was fascinated with them. I've been fascinated with firearms, especially handguns forever, as in, My mom told me, that before I was adopted by them at 18mos. I lived in a foster home with older brothers, they had toy guns, and once I came to live with them, every time we went to my favorite Uncle, and Aunt's house, I'd head straight to the toy box, and get the toy guns out. My dad had guns, and I was always enthralled with them, also my toy guns. So the love runs deep here. :)
